CEC opened a new chapter in music reproduction in 1991 with the world's first belt drive CD transport, the now famous TL 1.
The development of the TL 1 started on the technical premise that in their basic form, analog turntables and digital CD players are fundamentally the same. Although the speed of a CD varies, the change takes place in tiny increments. In other words the speed during a certain time period can be seen as constant.
Based on this result CEC developed a completely new CD playback system, which is free from acoustic feedback, has a higher signal to noise ratio and eliminates jitter. For this development CEC has worldwide patent rights.

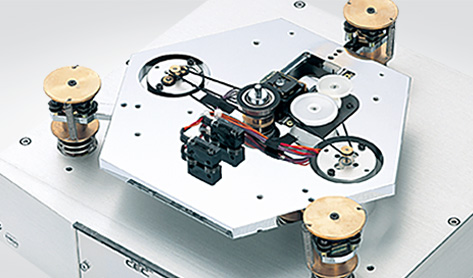

CEC use a low torque motor which drives via a precision belt a heavy stabilizer. The stabilizer not only secures the CD disc but also increase its inertia 26 times. The extremely heavy drive mechanism floats on a dual suspension system with high noise absorption. The drive and laser motors are isolated electronically, magnetically and mechanically from the laser pickup, and are coupled only via precision belts. The stabilizer centers the disc and provides excellent vibration absorption characteristics as well as a strong flywheel effect.
The high precision turntable shaft, a result of our analog experience, has a 4mm spindle of the highest precision with several self lubricating bearings.
Creative mastery of vibration control techniques resulted in this landmark product whose uniquely analog musicality has been hailed as nothing less than a revolution in digital audio.The TL 1 was considered to be the finest, and most musically satisfying instrument for digital reproduction in the opinion of music lovers, highend amplifier and loudspeaker manufacturers, and the world's high-end audio press.
The CEC Superlink is our innovative signal interconnect solution. It requires four discrete interconnect cables. The left/right-clock data, bit-clock data and digital audio music data are all transmitted from the CD-transport to the DAC while the master-clock is generated inside the DAC and sent to the CD-transport. The transmission is done with 4 x 75-Ohm BNC cables with impedance matching. Combining these latest digital data transfer techniques with our tried-and-tested belt-drive system, we have created audio reproduction free from motor noise.
Our new CEC TL 3N CD transport offers beautiful, precise and rewarding reproduction. The care and attention taken over the many technical innovations in the new CEC DA 3N make it sonically rich, detailed and emotionally gripping. Using high quality BNC cables to ensure minimal signal interference, the DA 3N makes it possible to transmit
high quality signals from its ideal counterpart – the CEC TL 3N - to the DAC, free of distortions and jitter with CEC Superlink. The CEC Superlink interconnect system, which uses high quality BNC cables, ensures optimal, jitter free, signal transfer from the CEC TL 3N transport to its matching DA 3N DAC.
Test reports in international magazines as well as the testimony of our satisfied customers worldwide confirm
that we have achieved our musical objective:
music reproduction on its highest level.
|
|
|
|
|
